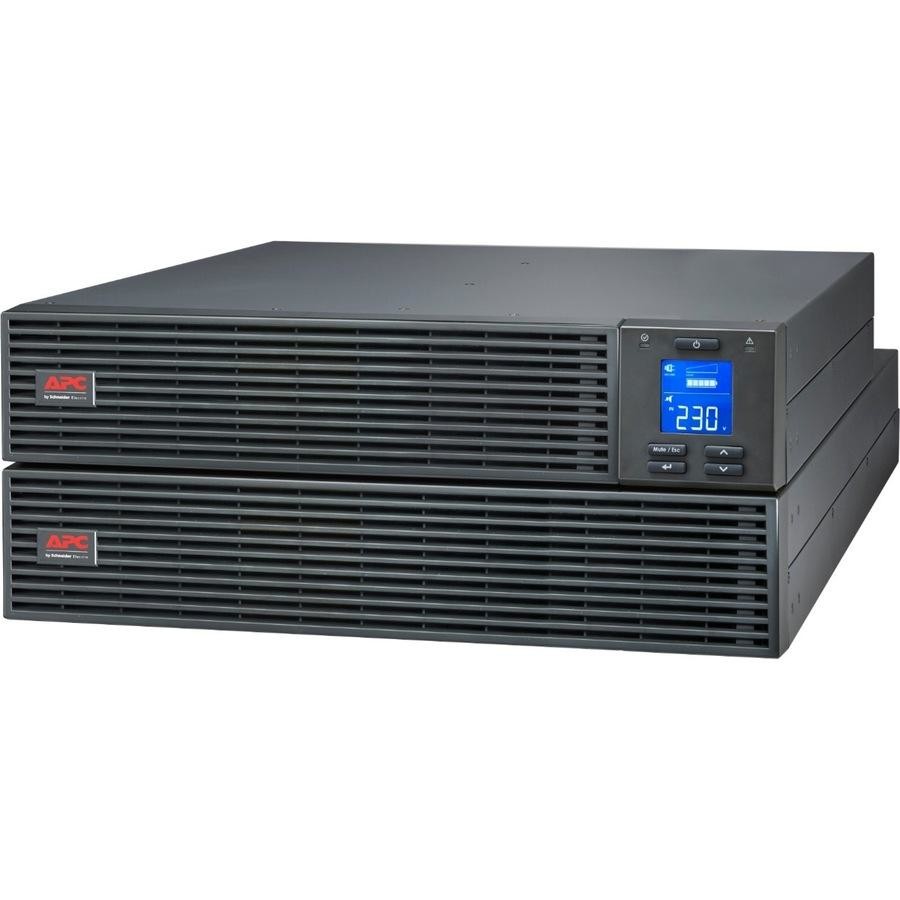

Online UPS - 3 kVA/2.40 kW

Controls/Indicators

Status Indicators

LED Indicators

Display & Graphics

Display

LCD

Management

Network Management

SmartSlot

Miscellaneous

Certifications & Standards

• IP20

• BIS

Warranty

Additional Warranty Information

2 years repair or replace

Battery Information

Battery Characteristics

External Battery System

DC System Voltage

72 V DC

Environmental Conditions

Minimum Operating Temperature

0°C

Maximum Operating Temperature

40°C

Maximum Operating Elevation

2 km (78740.16")

Interfaces/Ports

USB

Yes

Serial Port

Yes

EPO Port

Yes

Physical Characteristics

Weight (Approximate)

10.10 kg

Form Factor

Rack/Tower

Rack Height

2U

Height

8.62 cm (3.39")

Width

43.80 cm (17.24")

Depth

46.22 cm (18.20")

Product Color

Tarpaulin Gray

Color Family

Grey

General Information

Product Type

Double Conversion Online UPS

Manufacturer Part Number

SRV3KUXIINX

Manufacturer Website Address

http://www.schneider-electric.com

Packaged Quantity

1 Piece

Manufacturer

Schneider Electric SA

Product Model

SRV3KUXI-INX

Product Name

Easy UPS On-Line UXI SRV3KUXI-INX 3000VA Rack/Tower UPS

Product Line

Easy UPS On-Line

Product Series

UXI

Brand Name

APC by Schneider Electric

Power Description

Input Voltage

230 V AC

120 V AC

Output Voltage

240 V AC

230 V AC

220 V AC

Waveform Type

Pure Sine Wave

Input Voltage Range

110 V AC - 285 V AC

Output Frequency

60 Hz

50 Hz

Input Frequency

40 Hz

70 Hz

Load Capacity (VA)

3 kVA

Load Capacity (Watt)

2.40 kW

Technical Information

Application/Usage

Network Storage Device

Server

Telecommunication

Business

Computer Room

Data Center

Generator

Healthcare

IT

Manufacturing Facility

Features

Built-in Bypass Switch

Cold Start Function

Plug/Connector Type

Hard Wire 3 wire (1PH+N+G)

Phase

Single Phase

Receptacle Type

Hard Wire 3 wire (1PH+N+G)

Indian Socket

Receptacle Detail

1 x Hard Wire 3 wire (1PH+N+G)

3 x Indian Socket

Efficiency Detail

90% (Online Mode)

95% (Eco Mode)
