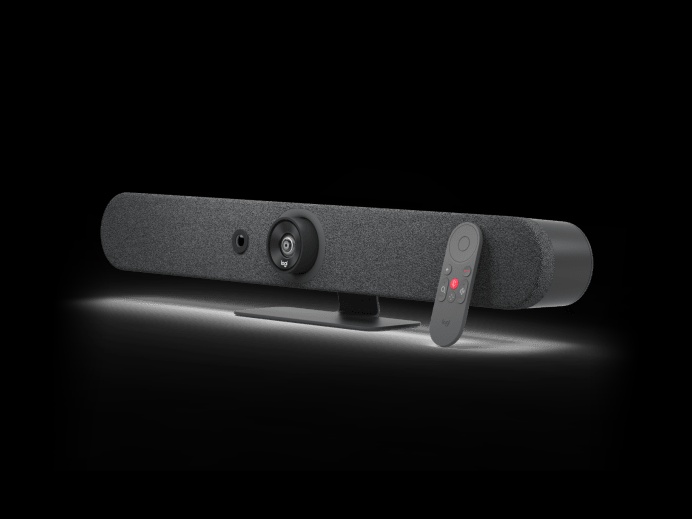

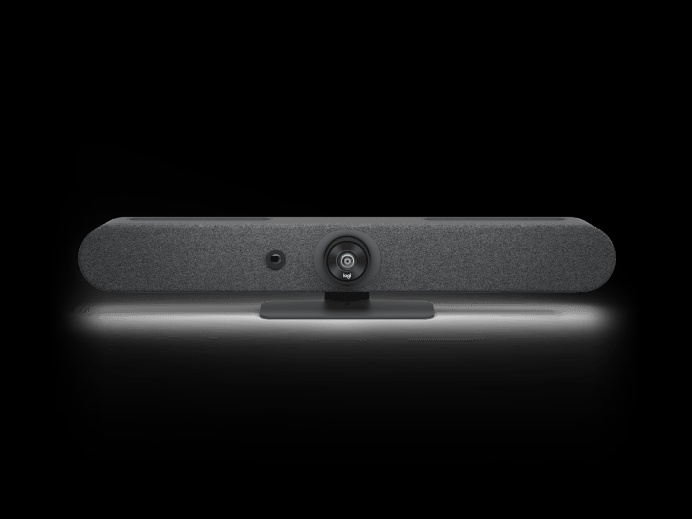

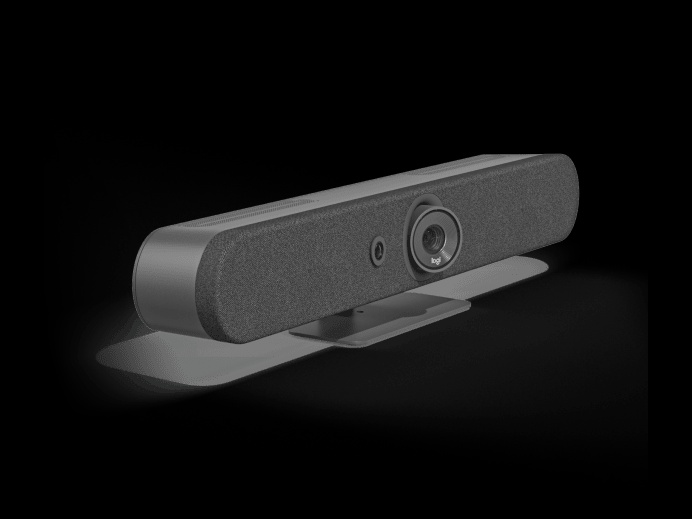

Logitech video conferencing camera Rally Bar
Rally Bar Mini
₹300000.00
Dimensions
Height: 91.4 mm
Width: 719 mm
Depth: 101 mm
Lens Depth: 18.5 mm
Weight: 4.03 kgs
Technical Specifications
Certifications & Compatibility
For the latest information on certifications and compatibility, visit www.logitech.com/support/vc-certifications
Microsoft Teams Rooms on Android 1For small sized rooms
Microsoft Teams Rooms on Windows 2For small sized rooms
General Specifications
Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management and retention system, table stand, Logitech CollabOS platform
Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
Device Management: Logitech Sync
Displays Supported: 2
Display Resolution: Up to 1080p
Network Protocol Support: IPv4, IPv6
Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25°
Tilt: Motorized ±15°
Zoom: 4X HD digital zoom
Diagonal Field of View: 120°
Horizontal Field of View: 113°
Vertical Field of View: 80.7°
Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
Woofer Speaker
Driver: 70 mm
Sensitivity: 92dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Rated Power: 8W
THD: 1kHz < 2% at 1W
Speaker Sampling Rate: 48KHz
Impedance: 4 Ohms
Midrange Speakers
Drivers: 2 x 43mm
Sensitivity: 84 dB SPL @ 1W/1M
Rated Power: 4W
THD: 1kHz < 2% at 1W
Speaker Sampling Rate: 48KHz
Impedance: 4 Ohms
Microphones
Frequency Response: 90Hz – 16kHz
Sensitivity: >-36dBFS +/-1 dB @ 1Pa
Microphone data rate output: 48 kHz
Pickup Range: Up to 7 m
Beamforming Elements: 6 omnidirectional digital MEMS microphones forming 5 adaptive acoustic broadside beams
Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
Noise suppression: AI based de-noising algorithm
Add-on Mics: Supports up to 3 additional Rally Mic Pods and 2 Rally Mic Pod Hubs for larger conference rooms
RightSense™ Technologies
RightLight: Renders natural skin tones for each participant
RightSight: Primary camera frames the active speaker while the AI Viewfinder captures everyone in the room
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Grid View: Detects and frames all meeting participants in order to create equitable hybrid meeting experiences. To learn more, visit logitech.com/prosupport/gridview
Interfaces
HDMI Out: 2 (up to 1080p)
HDMI In: 1
USB: 3x Type A, 1x Type C
Network: 10/100/1G Ethernet
WiFi: 802.11a/b/g/n/ac
External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
Remote Control: Bluetooth® Low Energy
Power & Cables
Power supply: Auto-sensing
Operating Voltage/Power: 100-240V, 19V, 4.74A
Power Supply Dimensions: 127 mm x 51 mm x 30 mm
DC Cable: 1.5 m
AC Cable: 1 m
HDMI 1.4 Cable: 2 m
USB A to USB C 3.0 Cable: 2.2 m
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -40 to 70°C
Humidity: 10 to 95%
BTU/hr: 57 idle, 64 in meeting
Security
Full Disk Encryption: AES-128
Data Encryption: Symmetric Keys, PKI
Device Identity: Protected by device attestation
Device Access: Authenticated using API
Key Protection: Arm TrustZone, RPMP
Accessories
Mounts: Wall Mount for Video Bars, TV Mount for Video Bars
Audio: Rally Mic Pod, Rally Mic Pod Hub, Rally Mic Pod Mount, Rally Mic Pod Extension Cable
Connectivity: Logitech Strong USB (10m, 25m, 45m)
Touch Controller: Logitech Tap and Tap IP 3Compatibility may vary, see www.logitech.com/support/tap-compatibility for the latest information
Warranty Information
Standard: 2-year limited hardware warranty included.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
