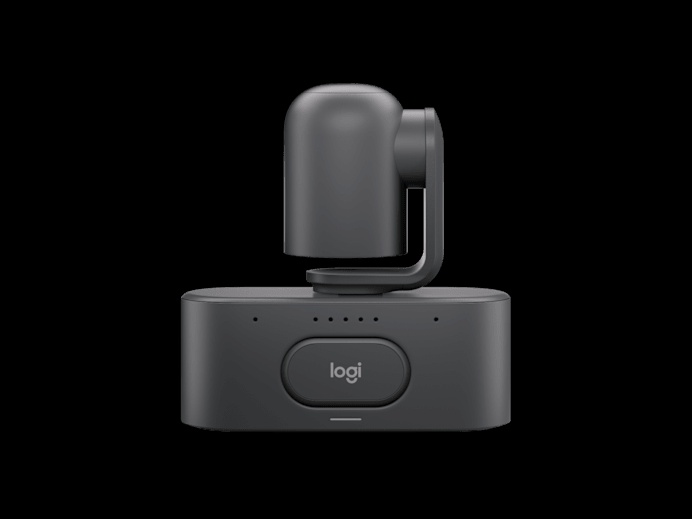

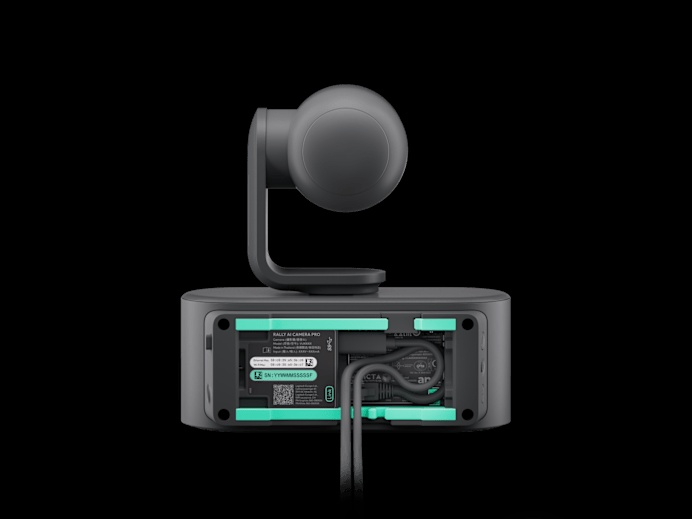

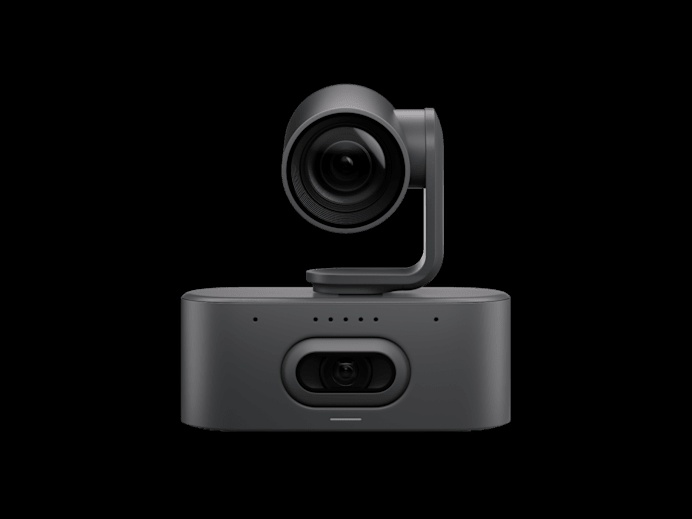

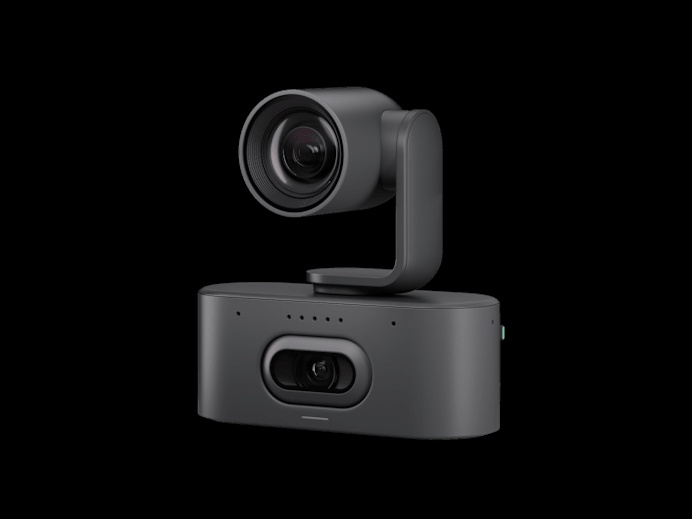

Logitech Video Conferencing camera Rally AI

Dimensions

Height: 231 mm

Width: 224 mm

Depth: 146 mm

Weight: 2.5 kg

Technical Specifications

System Requirements

• Certifications: Visit https://hub.sync.logitech.com/collabosguides/post/video-conferencing-platform-certifications-and-compatibility-Fa5oyWsqo5Dpx8B

• Resolutions higher than 1080p: 4K at 30 fps

Video

• Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30 fps

• Zoom: 15x (5x optical / 3x digital)

• Pan: ±90°

• Tilt: +50° / –90°

• Diagonal Field of View: 90°

• Horizontal Field of View: 82°

• Vertical Field of View: 52°

Audio

• Sampling Rate: 48 kHz

• Microphone Frequency Response: 90 Hz – 16 kHz

• Microphone Sensitivity: 48 kHz

• Beamforming Elements: 8 omni-directional digital MEMS

• Audio processing: USB: Beamforming + Direction of Arrival (used for camera framing)

Ports & Interfaces

• USB: 3.2 Gen 1

• WiFi: 802.11 a/b/g/n/ac/ax

• Bluetooth Low Energy: 5.3

Electrical & Environmental

• Power supply: POE++

• Operating voltage / power: 100–240V

• Power supply dimensions: 140mm × 35mm × 53mm

• AC cable: 1 m

• USB-C to USB-C: 2 m USB 3.2 Gen 1

• CAT cable: 3 m CAT6a

• Operating temperature: 0 to 35°C

• Storage temperature: –40 to 70°C

• Humidity: 10 to 95%

General Specifications

• WiFi: 802.11 a/b/g/n/ac/ax

• Device Management: Logitech Sync

• Display Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30 fps

• File Based Encryption: AES-128

• Data Encryption: Symmetric Keys, PKI

• Device Identity: Protected by device attestation

• Device Access: Authenticated using API

• Key Protection: Arm TrustZone, Secure Storage

• Lens Depth: 113 mm

Warranty Information

2-Year Limited Hardware Warranty. 1-Year and 3-Year Extended Warranty available for purchase.
