Ethernet Switch

Management & Protocols

Manageable

Yes

Switch Management Type

Smart Managed

I/O Expansions

Expansion Slot Type

SFP+

Number of SFP+ Slots

4

Total Number of Expansion Slots

4

Technical Information

Features

Plug and Play

Energy Efficient

Auto Denial of Service (DoS) Prevention

Interfaces/Ports

Network (RJ-45)

Yes

Modular

Yes

Uplink Port

Yes

Total Number of Network Ports

24

Port/Expansion Slot Details

4 x 10 Gigabit Ethernet Expansion Slot

24 x Gigabit Ethernet PoE

Media & Performance

Network Technology

10/100/1000Base-T

10GBase-X

Ethernet Technology

10 Gigabit Ethernet

Gigabit Ethernet

Media Type Supported

Twisted Pair

Optical Fiber

General Information

Product Type

Ethernet Switch

Manufacturer Part Number

JL683B

Manufacturer Website Address

http://www.hpe.com

Manufacturer

Hewlett Packard Enterprise

Product Name

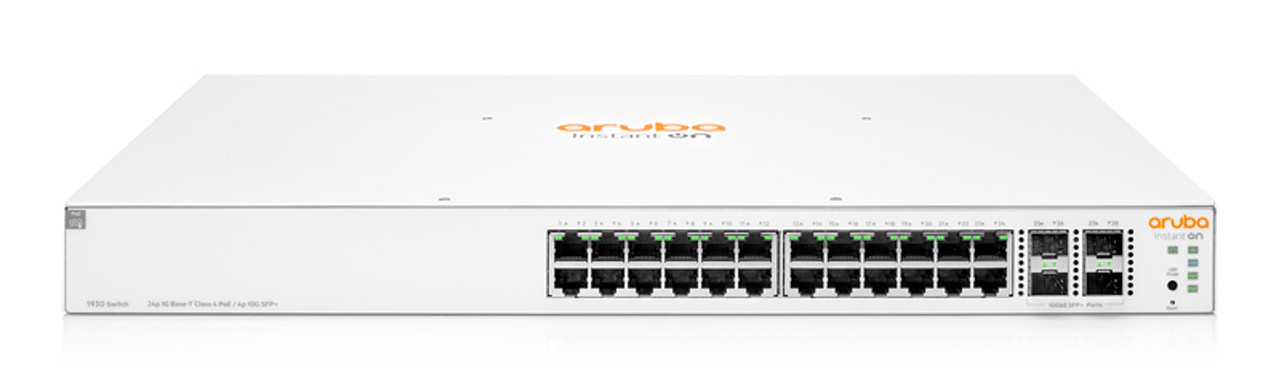

Networking Instant On Switch 24p Gigabit CL4 PoE 4p SFP+ 195W 1930

Product Line

Instant On

Product Series

1930

Brand Name

Aruba

Power Description

Input Voltage

120 V AC

230 V AC

Power Source

AC

Power Supply

Frequency

60 Hz

50 Hz

Power Consumption

280 W

PoE (RJ-45) Port

Yes

PoE Budget

195 W

Physical Characteristics

Weight (Approximate)

3.49 kg

Form Factor

Under Table

Wall Mountable

Table Top

Cabinet Mount

Rack-mountable

Height

4.39 cm (1.73")

Width

44.25 cm (17.42")

Depth

26.47 cm (10.42")

Compatible Rack Unit

1U

Miscellaneous

Application/Usage

Network

IP Phone

Indoor

Camera

Outdoor

Security

Small Business

Surveillance

Wireless Access Point

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

Network & Communication

Layer Supported

2

Networking Standards

IEEE 802.3x

IEEE 802.3z

IEEE 802.1ab

IEEE 802.1D

IEEE 802.1p

IEEE 802.1Q

IEEE 802.1s

IEEE 802.1w

IEEE 802.1x

IEEE 802.3

IEEE 802.3ab

IEEE 802.3af

IEEE 802.3at

IEEE 802.3az

IEEE 802.3u
