Epson WorkForce Wireless Network Colour Document Scanner

Core Performance & Image Quality:

• Scanner Type: A4/Legal sheet-fed, one-pass duplex color scanner. It scans both sides of a document simultaneously for maximum efficiency.

• Sensor Type: Dual CIS (Contact Image Sensor) (Front x 1, Back x 1).

• Light Source: 3-color RGB LED with ReadyScan LED technology, providing instant-on operation, no warm-up time, and low power consumption.

• Optical Resolution: 600 dpi x 600 dpi (Horizontal x Vertical), ensuring sharp and clear image capture.

• Output Resolution: Customizable from 50 dpi to 1,200 dpi (in 1 dpi increments).

• Bit Depth:

  • Color: 30-bit input, 24-bit output

  • Grayscale: 10-bit input, 8-bit output

  • Black & White: 10-bit input, 1-bit output

• Scanning Speed: Up to 45 ppm (pages per minute) / 90 ipm (images per minute) at 200/300 dpi (color and B&W, simplex/duplex). This is a significant speed improvement, making it ideal for high-volume scanning.

• Daily Duty Cycle: Up to 7,000 sheets per day, indicating robust build quality and reliability for heavy usage.

Advanced Document Handling & Features:

• Automatic Document Feeder (ADF) Capacity: 100 sheets (80 gsm paper), allowing for large batch scanning.

• Minimum Document Size: 50.8 x 50.8 mm (2" x 2")

• Maximum Document Size: 215.9 x 6,096 mm (8.5" x 240") for extra-long paper.

• Supported Paper Weight: 27 - 413 gsm, providing exceptional versatility for scanning various media types, including thin paper, business cards, and embossed plastic ID cards (up to 1.24 mm).

• Double Feed Detection: Ultrasonic Multi-feed Detection to prevent pages from being skipped during scanning.

• Slow Mode: Unique "slow mode" for gentle scanning of fragile or difficult documents.

• Active Separation Roller System: Ensures consistent paper feeding and prevents misfeeds.

• Paper Protection Function: Safeguards documents from damage.

• Image Sensor Glass Dirt Detection: Automatically alerts the user to clean the scanner glass to maintain optimal image quality.

• A3 Scanning: Supported with an optional A3 carrier sheet.

• Control Panel: Features a large, intuitive 10.9 cm (4.3-inch) color LCD touchscreen for easy navigation and PC-free operation. This is a major upgrade from the DS-730N's smaller screen.

• PC-Free Scanning (ScanWay™): Users can scan directly to a USB flash drive, network folders, email, or popular cloud storage services (like Dropbox, Evernote, Google Drive, OneDrive) without needing a connected computer.

• Advanced Authentication: Supports individual user authentication via the touchscreen or an optional card reader, allowing for customizable scan settings and access to personal usage records for enhanced security.

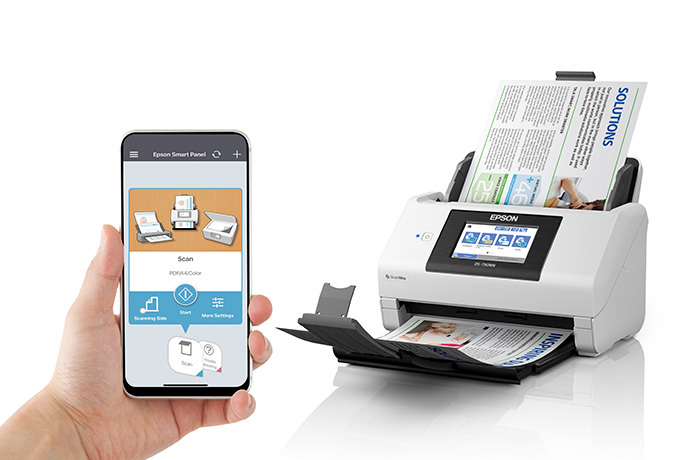

• Mobile Connectivity: Supports scanning directly from smartphones or tablets using the Epson Smart Panel app (iOS/Android).

Connectivity & Software:

• Standard Interfaces:

  • USB 3.0 (SuperSpeed USB)

  • Built-in Ethernet (1000Base-T/100Base-TX/10Base-T)

  • Built-in Wi-Fi (Wireless LAN b/g/n - 2.4GHz) & Wi-Fi Direct: This is the "WN" in the model name, providing flexible wireless connectivity.

  • USB Host: For connecting a USB flash drive for PC-free scanning or an optional card reader for authentication.

• Supported Operating Systems:

  • Windows: Windows XP SP3 / Vista / 7 / 8 / 8.1 / 10 / 11 / Server 2003 / Server 2008 / Server 2012 / Server 2016 / Server 2019

  • Mac: Mac OS X 10.6.8 or later, macOS 11 or later

  • Chromebook and Citrix compatibility.

• Scanner Driver Compatibility: TWAIN, ISIS, SANE (Linux), WIA, ICA (Mac), ensuring broad compatibility with various document management systems.

• Bundled Software:

  • Epson Scan 2: For comprehensive image processing and customization.

  • Epson Scan OCR Component: For creating searchable PDFs.

  • Document Capture Pro (Windows) / Document Capture (Mac): For advanced document capture, routing, and management, including integration with various cloud services and Microsoft applications.

  • Presto! BizCard: For business card management.

  • Epson Device Admin, Web browser interface: For network management.

Physical & Environmental:

• Product Dimensions (W x D x H): Approximately 296 x 212 x 217 mm (11.7" x 8.35" x 8.54").

• Product Weight: Approximately 3.7 kg (8.1 lbs).

• Power Consumption:

  • Operating: Approx. 15W

  • Ready Mode: Approx. 5.3W

  • Sleep Mode: Approx. 1.5W

  • Power Off: Approx. 0.1W

• Eco Features: ENERGY STAR qualified, RoHS compliant, Recyclable product.

• Warranty: Typically offered with a 3-year limited warranty with Advance Exchange in many regions, providing excellent peace of mind
