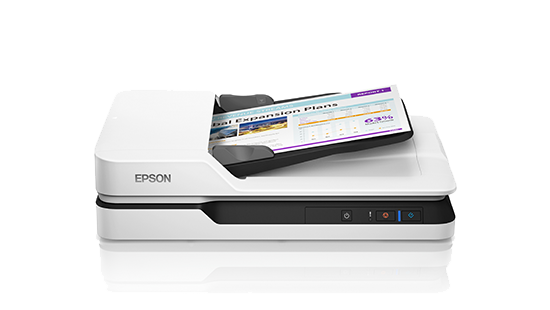

Epson WorkForce DS-1630

Scanning Technology & Performance:

• Scanner Type: A4 flatbed color image scanner with a built-in ADF. This is its key advantage, allowing you to scan various document types.

• Sensor Type: Contact Image Sensor (CIS)

• Light Source: RGB LED (ReadyScan LED technology for instant-on operation)

• Optical Resolution:

  • Flatbed: 1,200 dpi x 1,200 dpi (Horizontal x Vertical) - Ideal for photos, fragile documents, books, and bound materials where high detail is needed.

  • ADF: 600 dpi x 600 dpi (Horizontal x Vertical) - Sufficient for typical document scanning.

• Output Resolution: 50 – 1,200 dpi (in 1 dpi increments)

• Bit Depth:

  • Color: 30-bit input, 24-bit output

  • Grayscale: 10-bit input, 8-bit output

  • Black & White: 10-bit input, 1-bit output

• Scanning Speed (at 200/300 dpi):

  • ADF Simplex (single-sided): 25 ppm (pages per minute)

  • ADF Duplex (double-sided): 10 ipm (images per minute) (Note: This is a 3-pass duplex, meaning it scans one side, then flips the page to scan the other, unlike faster single-pass duplex scanners).

  • Flatbed (A4 Color/Mono): Approx. 6.0 - 7.0 seconds at 200/300 dpi.

• Daily Duty Cycle: Up to 1,500 pages per day, indicating it's suitable for moderate daily scanning volumes.

Document Handling:

• Automatic Document Feeder (ADF) Capacity: 50 sheets (80 gsm paper)

• Maximum Document Size (Flatbed): 216 x 297 mm (8.5" x 11.7") - Standard A4/Letter size.

• Maximum Document Size (ADF): 215.9 x 3,048 mm (8.5" x 120") - For long documents in simplex mode.

• Minimum Document Size (ADF): 89 x 127 mm (Simplex), 89 x 170 mm (Duplex)

• Supported Paper Weight (ADF): 50 - 120 gsm, handles a good range of standard office papers.

• Duplex Scanning: Yes, via the ADF (3-pass method).

• Special Features:

  • Can scan plastic cards, photo IDs, passports, and delicate items on the flatbed.

  • Intelligent color and image adjustments (auto crop, skew correction, blank page removal, background removal, color enhancement, color dropout).

  • Long document mode (up to 3 meters in simplex ADF).

Connectivity & Software:

• Standard Interface: USB 3.0 (SuperSpeed USB).

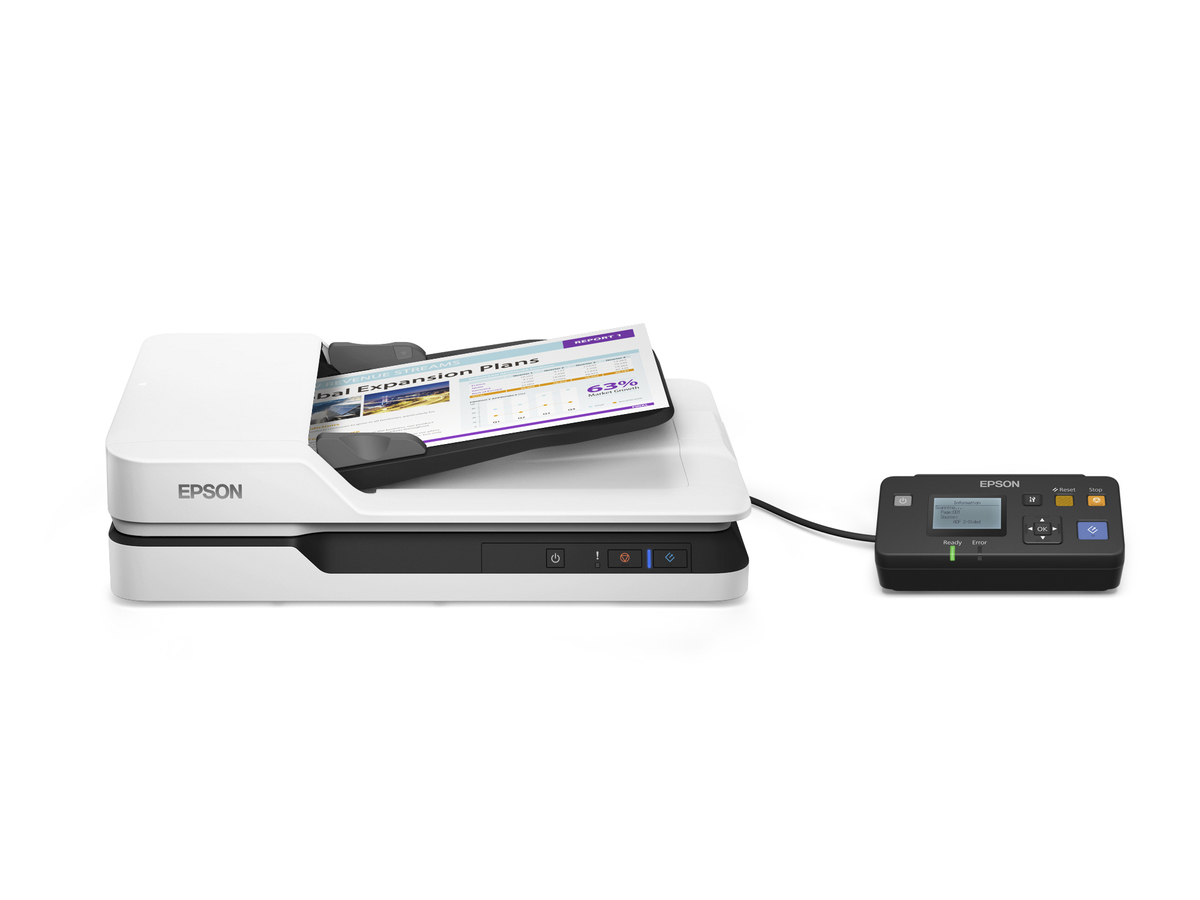

• Optional Connectivity: Ethernet (RJ-45, 10BaseT/100BaseTX) with an optional Network Interface Unit. This allows the scanner to be shared across a network.

• Supported OS: Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11, Windows Server 2003 / 2008 / 2012, Mac OS X 10.6.8 or later.

• Scanner Driver Compatibility: TWAIN, ISIS, SANE (Linux), WIA, ICA (Mac).

• Bundled Software:

  • Epson Scan 2: Primary scanning software with advanced image processing.

  • Epson Scan OCR Component: For creating searchable PDFs and editable files (Word, Excel).

  • Document Capture Pro (Windows) / Document Capture (Mac): For easy document capturing, routing, and management, including scan-to-email, network folders, cloud services (Dropbox, SharePoint, Evernote, Google Drive), and more.

  • Presto! BizCard: For business card management.

• Control Panel: Simple interface with 3 buttons (Power, Scan, Stop) and status LEDs.

Physical & Environmental:

• Product Dimensions (W x D x H): Approximately 451 x 318 x 121 mm (17.7" x 12.5" x 4.8")

• Product Weight: Approximately 3.9 kg (9 lbs)

• Power Consumption:

  • Operating: Approx. 11W

  • Ready Mode: Approx. 5.8W

  • Sleep Mode: Approx. 0.8W

  • Power Off: Approx. 0.15W

• Eco Features: ENERGY STAR certified, RoHS compliant.

• Warranty: Typically comes with a 1-year or 3-year limited warranty with Advance Exchange in some regions.
