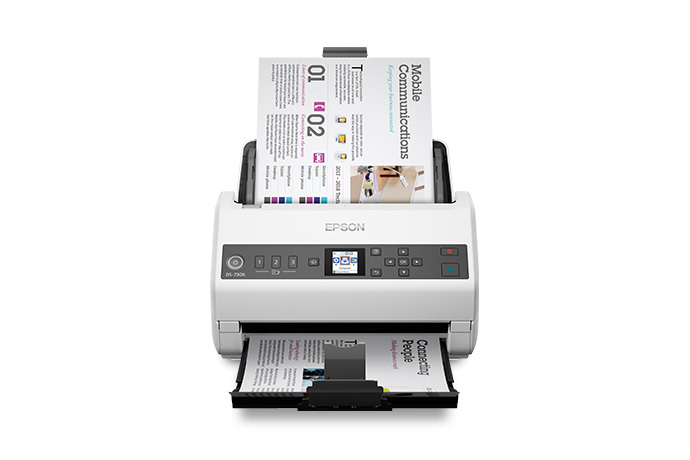

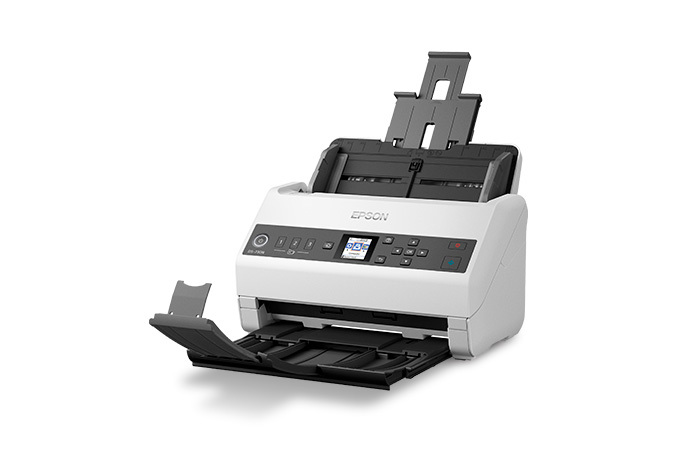

Epson WorkForce Document Scanner

Core Performance & Image Quality:

• Scanner Type: A4/Legal sheet-fed, one-pass duplex color scanner. This means it scans both sides of a document simultaneously, increasing efficiency.

• Sensor Type: Dual CIS (Contact Image Sensor) (Front x 1, Back x 1).

• Light Source: 3-color LED (RGB) with ReadyScan LED technology, which means virtually no warm-up time, saving energy and improving productivity.

• Optical Resolution: 600 dpi x 600 dpi (Horizontal x Vertical), providing crisp and clear scans.

• Output Resolution: Flexible, from 50 dpi to 1,200 dpi (in 1 dpi increments), allowing for varied quality outputs based on need.

• Bit Depth:

  • Color: 30-bit input, 24-bit output

  • Grayscale: 10-bit input, 8-bit output

  • Black & White: 10-bit input, 1-bit output

• Scanning Speed:

  • Up to 35 ppm (pages per minute) / 70 ipm (images per minute) at 200/300 dpi (color and B&W, simplex/duplex). This is a strong point for fast document processing.

  • At 600 dpi, speeds are 12 ppm / 24 ipm.

• Daily Duty Cycle: Up to 5,500 pages per day, indicating its robustness for handling significant scanning volumes in busy offices.

Advanced Document Handling:

• Automatic Document Feeder (ADF) Capacity: 50 sheets (based on 80 gsm paper).

• Minimum Document Size: 50.8 x 50.8 mm (2" x 2")

• Maximum Document Size: 215.9 x 6,096 mm (8.5" x 240") for long paper, making it suitable for a wide range of documents.

• Supported Paper Weight: A very versatile range of 27 - 413 gsm (grams per square meter), allowing it to scan everything from thin paper to thick cards (including plastic cards with/without emboss).

• Double Feed Detection: Features Ultrasonic Multi-feed Detection to prevent skipping pages, ensuring data integrity.

• Slow Mode: An industry-first slow mode, which is particularly useful for scanning crumpled, fragile, or very thin documents without damage.

• Active Separation Roller System: Further prevents double feeding of documents.

• A3 Scanning: Can scan A3 documents using an optional A3 carrier sheet.

Connectivity & Software Ecosystem:

• Standard Interface: High-speed USB 3.0 (SuperSpeed USB), ensuring fast data transfer.

• Optional Connectivity: Can be made network-ready with an optional Network Interface Unit (B12B808461), allowing multiple users to share the scanner.

• Supported Operating Systems:

  • Windows: Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012

  • Mac: Mac OS X 10.6.8 or later

• Scanner Driver Compatibility: TWAIN, ISIS, SANE (Linux), WIA, ICA (Mac), ensuring broad compatibility with various document management systems.

• Bundled Software:

  • Epson Scan 2: Offers powerful image enhancement features like de-skew, auto rotate, color enhancement, color dropout, and more.

  • Document Capture Pro (Windows) / Document Capture (Mac): Facilitates easy capturing, storing, and managing electronic documents. It supports "scan to" functions like email, FTP, SharePoint, print, web folders, network folders, and the creation of searchable PDFs with built-in OCR (Optical Character Recognition).

  • Presto! BizCard 5.6: For efficient business card management.

Physical & Environmental:

• Product Dimensions (W x D x H): Approximately 296 x 169 x 176 mm (11.65" x 6.65" x 6.93"). It's a compact desktop scanner.

• Product Weight: Approximately 3.7 kg (8.16 lb).

• Power Consumption: Energy-efficient with low power consumption: Approx. 11W (Operating), 5.4W (Ready), 1.0W (Sleep), 0.1W (Off).

• Eco Features: RoHS compliant, recyclable product, and ENERGY STAR certified.

• Warranty: Typically comes with a 1-year or 3-year limited warranty, with Advance Exchange and Next-Business-Day Replacement in some regions, minimizing downtime
