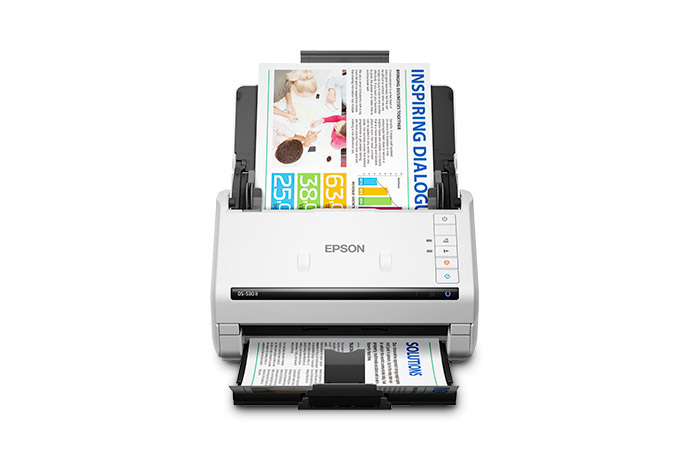

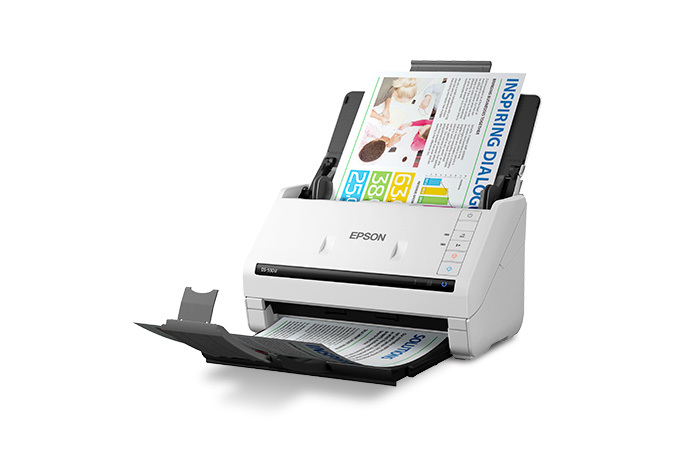

Epson WorkForce Document Scanner

Scanning Technology & Performance:

• Scanner Type: A4/Legal sheet-fed, one-pass duplex color scanner

• Sensor Type: Dual CIS (Contact Image Sensor) (Front x 1, Back x 1)

• Light Source: 3-color LED (RGB)

• Optical Resolution: 600 dpi x 600 dpi (Horizontal x Vertical)

• Output Resolution: 50 – 1,200 dpi (in 1 dpi increments)

• Bit Depth:

  • Color: 30-bit input, 24-bit output

  • Grayscale: 10-bit input, 8-bit output

  • Black & White: 10-bit input, 1-bit output

• Scanning Speed: Up to 35 ppm (pages per minute) / 70 ipm (images per minute) at 200/300 dpi (color and B&W, simplex/duplex). Speeds decrease at higher resolutions (e.g., 12 ppm/24 ipm at 600 dpi).

• Daily Duty Cycle: Up to 5,500 pages per day

Document Handling:

• Automatic Document Feeder (ADF) Capacity: 50 sheets (80 gsm paper)

• Minimum Document Size: 50.8 x 50.8 mm (2" x 2")

• Maximum Document Size: 215.9 x 6,096 mm (8.5" x 240") - for long paper

• Supported Paper Weight: 27 - 413 gsm (grams per square meter), allowing for scanning of very thin to very thick documents, including plastic cards.

• Double Feed Detection: Ultrasonic Multi-feed Detection to prevent skipped pages.

• Slow Mode: An industry-first slow mode for scanning crumpled or fragile documents.

• Active Separation Roller System: Prevents document double feeds.

• A3 Scanning: Possible with an optional A3 carrier sheet.

Connectivity & Software:

• Standard Interface: USB 3.0 (SuperSpeed USB)

• Optional Connectivity: Ethernet with optional Network Interface Unit (B12B808461)

• Supported OS:

  • Windows XP / Vista / 7 / 8 / 8.1 / 10 / Server 2003 / Server 2008 / Server 2012

  • Mac OS X 10.6.8 or later

• Scanner Driver Compatibility: TWAIN, ISIS, SANE (Linux), WIA, ICA (Mac)

• Bundled Software:

  • Epson Scan 2: For image editing and scanning controls (de-skew, auto rotate, color enhancement, color dropout, etc.).

  • Document Capture Pro (Windows only) / Document Capture (Mac only): For easy capturing, storing, and managing electronic documents, including features like scan to email, FTP, SharePoint, print, web folders, network folders, and creation of searchable PDFs (OCR built-in).

  • Presto! BizCard 5.6 (for business card management).

Physical Specifications:

• Product Dimensions (W x D x H): Approximately 296 x 169 x 176 mm (11.65" x 6.65" x 6.93")

• Product Weight: Approximately 3.7 kg (8.16 lb)

• Power Consumption:

  • Operating: Approx. 11W

  • Ready Mode: Approx. 5.4W

  • Sleep Mode: Approx. 1.0W

  • Power Off: Approx. 0.1W

• Eco Features: RoHS compliant, Recyclable product, ENERGY STAR certified.
